Chromateq CQSA-E 1024

Sale price490.00€

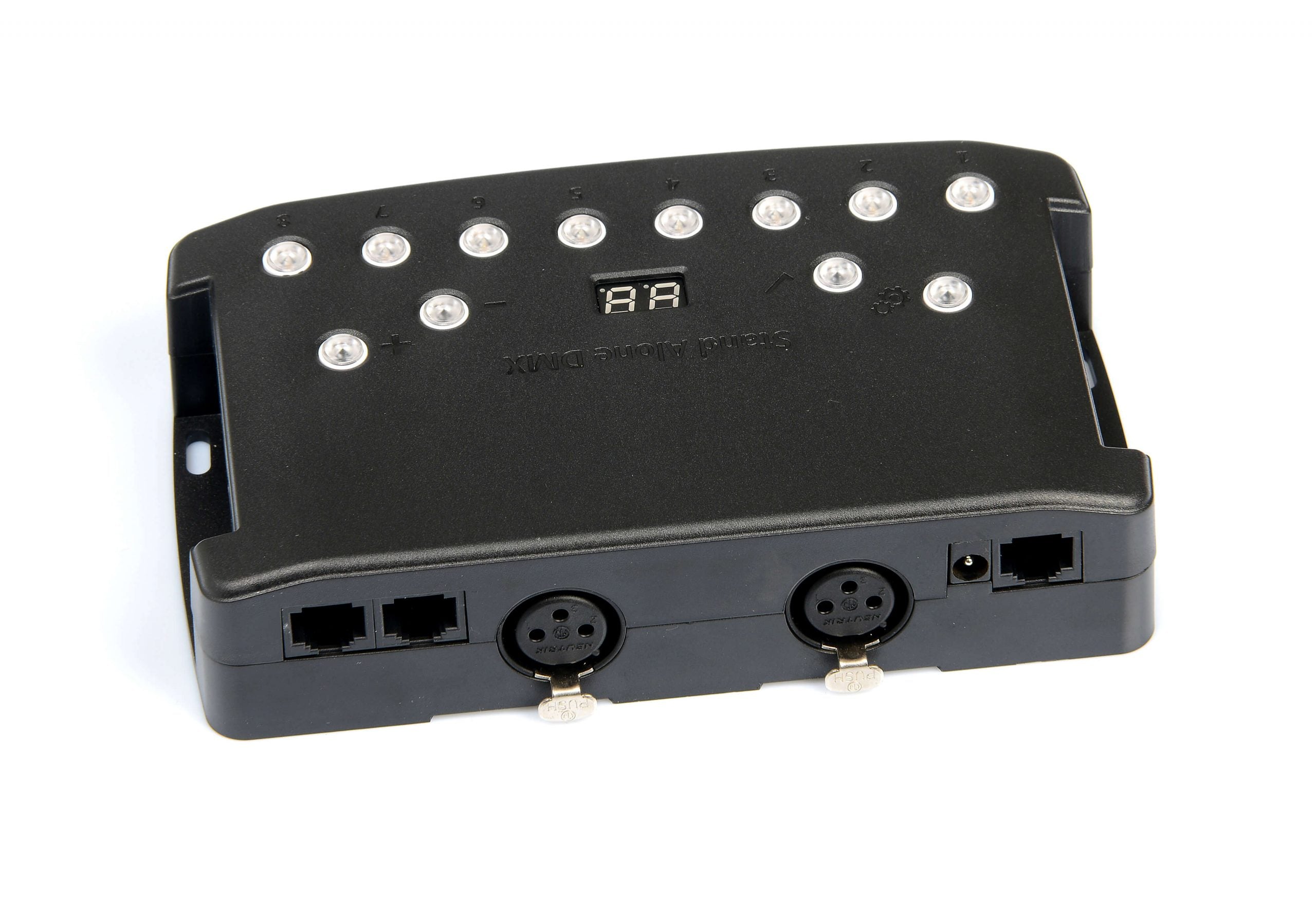

Ethernet to DMX standalone interface.

The CQSA-E includes an Ethernet port in addition to the USB port. This gives long-distance access and communication with the device anywhere on a Local network (LAN & WLAN) or on the Internet (via Web server). Connected to an access point or a router, you can easily control it with a mobile or tablet using the Wi-Light 2 app. It has the same hardware features as the CQSA 1024 but with an ETHERNET port for the Local Area Network.

A 6-in-1 multiprotocol Standalone device featuring DMX playback, DMX In/Out, Art-Net Out, sACN Out, Node (Art-Net to DMX decoder), and Splitter, the CQSA-E is a versatile and essential tool designed to meet the needs of the broadest array of lighting projects, Live performances and installations.

Easy and simple Web remote operation:

  • Create your user account (login, email, password) and log in with Wi-Light 2
  • Register connected devices to your account (internet connection required)
  • Start Wi-Light 2 to see and select connected devices
  • Remotely program your CQSA-E controllers and light shows from anywhere
  • Configure the CQSA-E remotely from any smartphone, tablet or computer
  • Perform maintenance of projects, update the firmware or program remotely
  • No additional hardware or software is required, and no monthly fees or subscriptions



Live and Stand Alone

Outstanding functionality and reliability for both live show control and permanent installations of lighting.

Ethernet LAN / WLAN

Scalable, up to 128 connected interfaces via Ethernet. Remote communication anywhere on the network.

ART-NET and sACN

Broadcast/multicast to 8 Art-Net/sACN universes from a micro SD card over Ethernet in Stand-alone.

NODE - ART-NET Decoder

Art-Net to DMX decoder and converter translates Art-Net data and outputs DMX signals via 2 DMX ports.

DMX

2×512 DMX outputs per interface. Split, Merge, Trigger, Record DMX data via our softwares.

Chromateq CQSA-E 1024 specifications | Hardware & DMX (Software & Live)

LED PLAYER / PRO DMX / PIXXEM (In/Out)

1024 (2x512)

Web Remote over Internet

Yes (Free, no year additional fees)

Ethernet (10 Mb/s)

Yes (LAN, Internet, compatible with Wifi routers)

Stand Alone

DMX Out (16-bit channels)

1024 (2x512, 2U.)

Zone (Scene play a time)

5

MASTER / SLAVE Synchro (Wired + Ethernet)

Yes, (32 max wired / 128 max Ethernet)

Memory (Stand Alone)

Memory Step capacity

2K ~10K

Internal memory (No SD required)

Yes, 4Mb

Max Scene capacity

5x512

SD Card expansion slot (Class 10 Micro SD)

Yes (FAT format, max. 256 GB, Class 10)

Triggers (Stand Alone)

Buttons (8x scene/colour playback, 4x function menu navigation)

Yes

RTC (Built in Clock and Calendar with Hour, Day, Week, Month, Year)

Yes

Wi-Light 2 APP, UDP, JSON (requires a WIFI router)

Yes (LAN, Internet)

Software

LED PLAYER

Up to 64x512 DMX Outputs

PRO DMX

30 mns Audio and Video Timeline

PIXXEM

Up to 255x512 DMX Outputs

Downloads

Chromateq CQSA-E 1024 - Product Specifications
Data Sheet
